XML (Extensible Markup Language) is a markup language that is used to store arbitrary data in a structured format that is both human-readable and machine-readable.

A markup language stores information with specific rules or format, typically with elements in tags. The angle brackets (opening < and closing >) are commonly used as tags. The closing tag is typically preceded by a forward slash / to indicate the end of the element. For example, <text></text> specify a "text" element.

XML Component​

Suppose we want to list an employee data. With XML, it can be defined as follows.

<employee>
  <name gender="male">John Doe</name>
  <age>30</age>
  <department>Engineering</department>
</employee>

XML allows for an element included within another element. employee element act as the root element; and name, age, and department are the child elements.

Actual data can be included between the tags. A tag can also have attributes, which is additional information or metadata about the element. The gender="male" is the attribute of name element, which in this case specify the gender of the employee with the name of "John Doe."

Document Type Definition (DTD)​

We need to specify how an element can be used correctly in an XML file. A DTD is a specification file that defines the correct structure and usage of markup elements in a markup language like XML.

DTD is declared within the XML document using the <!DOCTYPE> declaration. For example, the previous XML example may contain this DTD:

<!DOCTYPE employee [
  <!ELEMENT employee (name, age, department)>
  <!ELEMENT name (#PCDATA)>
  <!ATTLIST name gender (male|female) #REQUIRED>
  <!ELEMENT age (#PCDATA)>
  <!ELEMENT department (#PCDATA)>
]>
  • <!DOCTYPE>: Define the root element as employee.
  • <!ELEMENT>: Declaration that define the structure of elements. For example, the element declaration for employee states that it must contain name, age, and department elements. The <!ELEMENT> declarations for name, age, and department specify that they contain parsed character data (#PCDATA), which are text contents.
  • <!ATTLIST>: Specifies that the element has an attribute, the name has attribute called gender and must be either "male" or "female" using the (|). The attribute is required (#REQUIRED).

XML Schema​

XML Schema, also known as XML Schema Definition (XSD), is the successor to DTDs and is far more powerful. XSD offers more features for defining XML structure, including data types, strong typing, complex data structures (such as nested elements and sequences), and the ability to define custom data types and complex constraints.

XSD also provides a way to distinguish between similar XML schema definitions by ensuring that elements, attributes, and types within a specific schema are uniquely identified. This unique identifier is called an XML namespace.

A schema is defined with <xs:schema></xs:schema> and namespace is specified with xmlns:xs=.

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <!-- Schema definition goes here -->
</xs:schema>

The namespace value http://www.w3.org/2001/XMLSchema means that the XML file is associated with that mentioned URI.

A schema for the employee example.

<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="employee">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="name" type="xs:string">
          <xs:complexType>
            <xs:attribute name="gender" type="xs:string" use="required"/>
          </xs:complexType>
        </xs:element>
        <xs:element name="age" type="xs:positiveInteger"/>
        <xs:element name="department" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
  </xs:element>
</xs:schema>
  • <xml>: An XML file begins with xml tags specifying version and the encoding used to encode the text.
  • <xs:schema>: Act as the root of the schema with the namespace attribute.
  • <xs:element>: Define an element with the attribute employee as the name. We can also specify attribute type for the data types.
  • <xs:complexType>: Defines the complex type for the employee element. It allows for the specification of the child elements attributes.
  • <xs:sequence>: Define the sequence or order in which child elements should appear within a complex type.
  • <xs:attribute>: Define the attribute of element name with attribute use to mark it as required.

XML Parsing​

XML file follows a hierarchical tree-like structure. It consists of elements, attributes, and text content. The parsing process includes:

  1. Lexical Analysis: XML parser reads the raw XML data character by character and breaks it down into small piece called tokens.

  2. Syntax Analysis: Parser analyzes the tokens to ensure they conform to the XML syntax rules. It checks for correct opening and closing tags, balanced nesting of elements, proper attribute syntax, and other rules defined by the XML specification.

  3. Document Object Model (DOM) Construction: The parser construct a tree with the token as the node. The tree aligns with XML structure, as it is structured hierarchical like a tree.

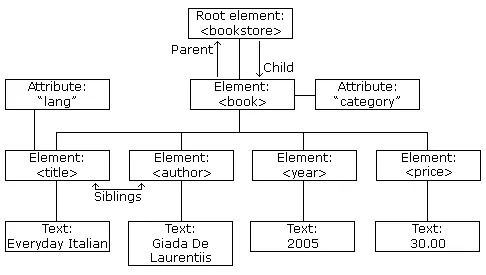

    Example of XML tree with the root element bookstore
    Source: https://www.w3schools.com/xml/xml_tree.asp

  4. Validation: If DTD or XML Schema is specified, the parser can perform validation to ensure the XML document adheres to the specified structure and constraints. This step involves checking element and attribute types, data formats, required fields, and other rules defined in the DTD or XML Schema.

  5. Application Processing: Once the XML data is parsed and validated, the application can access and process the structured XML representation stored in memory (such as the DOM tree) such as extracting information, performing computations, storing data, or generating output based on the XML content.

    Diagram of XML parsing
    Source: https://www.edureka.co/blog/java-xml-parser/

info

Another approach to parse XML is event-based parsing. In event-based parsing, the parser generates events as it encounters XML tokens. An event can be the start of an element, end of an element, attribute values, and text content. This approach can be more memory-efficient compared to traditional tree-based parsing, especially in cases where the application does not need to process the full XML content, but only needs to extract specific information.
